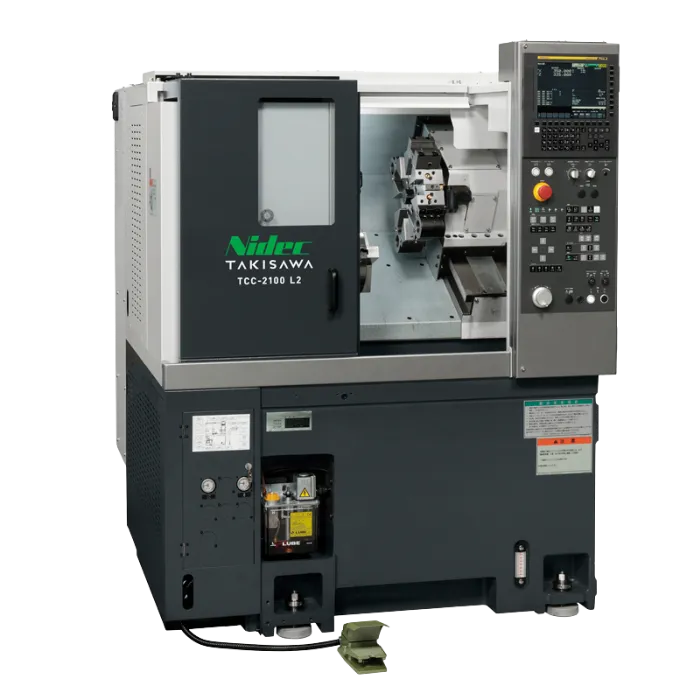

TAKISAWA TCC-SERIES
The Takisawa TCC Series CNC lathe is a high-productivity single spindle CNC machine ideal for precision turning. Designed for compact efficiency, this CNC machining center ensures extreme accuracy for small-part machining, including precision shafts. Equipped with an advanced CNC spindle, it delivers reliable cutting and shaping performance. Perfect for high-speed operations, this turning machine offers optional gantry loading solutions, making it a versatile choice for optimizing productivity in CNC machining applications.
Request A Quote
Specifications
Specifications
| T8 Turret |
|
| Maximum Swing |
14.96" |
| Maximum Turning Diameter |
8.62" |
| Max Turning Length |
6.73" |
| Bar Capacity |
1.65" |
| Chuck Size |
6" |
| Spindle Speed |
4000 / 5000 / 6000 |
| Spindle Horsepower |
7.3 / 4.9 |
| Number of Tools |
8 |
| Control |
Fanuc Oi-TF |
| T12 Turret |
|
| Maximum Swing |
14.96" |
| Maximum Turning Diameter |
6.70" |
| Max Turning Length |
6.73" |
| Bar Capacity |
1.65" |
| Chuck Size |
6" |
| Spindle Speed |
4000 / 5000 / 6000 |
| Spindle Horsepower |
10 / 7.3 |
| Number of Tools |
12 |
| Control |
Fanuc Oi-TF |
| T8 Turret |
|
| Maximum Swing |
16.54" |
| Maximum Turning Diameter |
13.75" |
| Max Turning Length |
7.42" |
| Bar Capacity |
2.00" |
| Chuck Size |
8" |
| Spindle Speed |
2500 / 4100 / 5000 / 6000 |
| Spindle Horsepower |
15 / 10 |
| Number of Tools |
8 |
| Control |
Fanuc Oi-TF |
| T12 Turret |
|
| Maximum Swing |
16.54" |
| Maximum Turning Diameter |
12.60" |
| Max Turning Length |
7.52" |
| Bar Capacity |
2.00" |
| Chuck Size |
8" |
| Spindle Speed |
2500 / 4100 / 5000 / 6000 |
| Spindle Horsepower |
15 / 10 |
| Number of Tools |
12 |
| Control |
Fanuc Oi-TF |
| T8 Turret |
|
| Maximum Swing |
16.54" |
| Maximum Turning Diameter |
13.75" |
| Max Turning Length |
11.35" |
| Bar Capacity |
2.00" |
| Chuck Size |
8" |
| Spindle Speed |
2500 / 4100 / 5000 / 6000 |
| Spindle Horsepower |
15 / 10 |
| Number of Tools |
8 |
| Control |
Fanuc Oi-TF |
| T12 Turret |
|
| Maximum Swing |
16.54" |
| Maximum Turning Diameter |
12.60" |
| Max Turning Length |
11.45" |
| Bar Capacity |
2.00" |
| Chuck Size |
8" |
| Spindle Speed |
2500 / 4100 / 5000 / 6000 |
| Spindle Horsepower |
15 / 10 |
| Number of Tools |
12 |
| Control |
Fanuc Oi-TF |
Features
Features
The Takisawa TCC Series ensures high-productivity with extreme accuracy in a compact design. This machine is well-suited for small-part turning including precision shafts and is available with optional gantry loading solutions.
