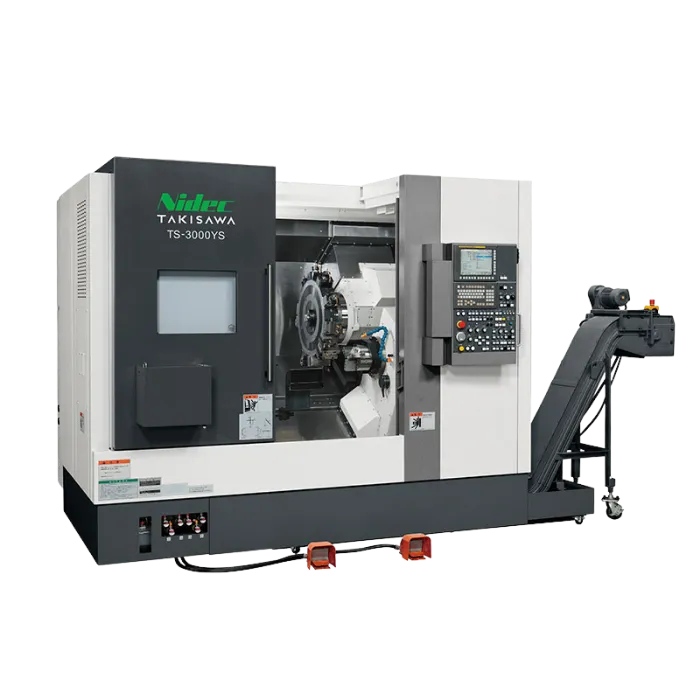

TAKISAWA TS-SERIES
The Takisawa TS Series CNC Machines deliver precision and efficiency, offering multi-axis milling and turning in one robust machining center. These multi-axis CNC machines excel at producing complex parts in a single setup, ensuring superior accuracy, enhanced surface finishes, and reduced fixture setups. With optimized tool life, production efficiency, and cost savings, the TS Series is perfect for iterative design, prototypes, and high-precision product development. Trust Takisawa for cutting-edge CNC machining performance.
Request A Quote
Specifications
Specifications
| Specification |
Detail |
| Right Spindle Stock |
• |
| Tailstock (NC Servo Type) |
- |
| Chuck Size (in) |
6+6 |
| Max. Turning Diameter (mm) |
12-Station Turret (All-Holder Type): φ370
10-Station Turret (All-Holder Type): φ370
15-Station Turret (All-Holder Type): φ315
20-Station Turret (All-Holder Type) Standard: φ292 |
| Max. Turning Length (mm) |
12-Station Turret (All-Holder Type): 565
10-Station Turret (All-Holder Type): 565
15-Station Turret (All-Holder Type): 550
20-Station Turret (All-Holder Type) Standard: 565 |
| Bar Capacity *1 (mm) |
φ51 |
| Left Spindle Speed (min-1) |
6000 |
| Right Spindle Speed (min-1) |
6000 |
| Rotary Tool Speed (min-1) |
6000 |
| Rapid Traverse Rate (m/min) |
X : 30 / Z : 30 / Y : 10 / A : 30 |
Left Spindle Motor
(30 min/continuous) kW |
11/7.5 |
Right Spindle Motor
(30 min/continuous) kW |
11/7.5 |

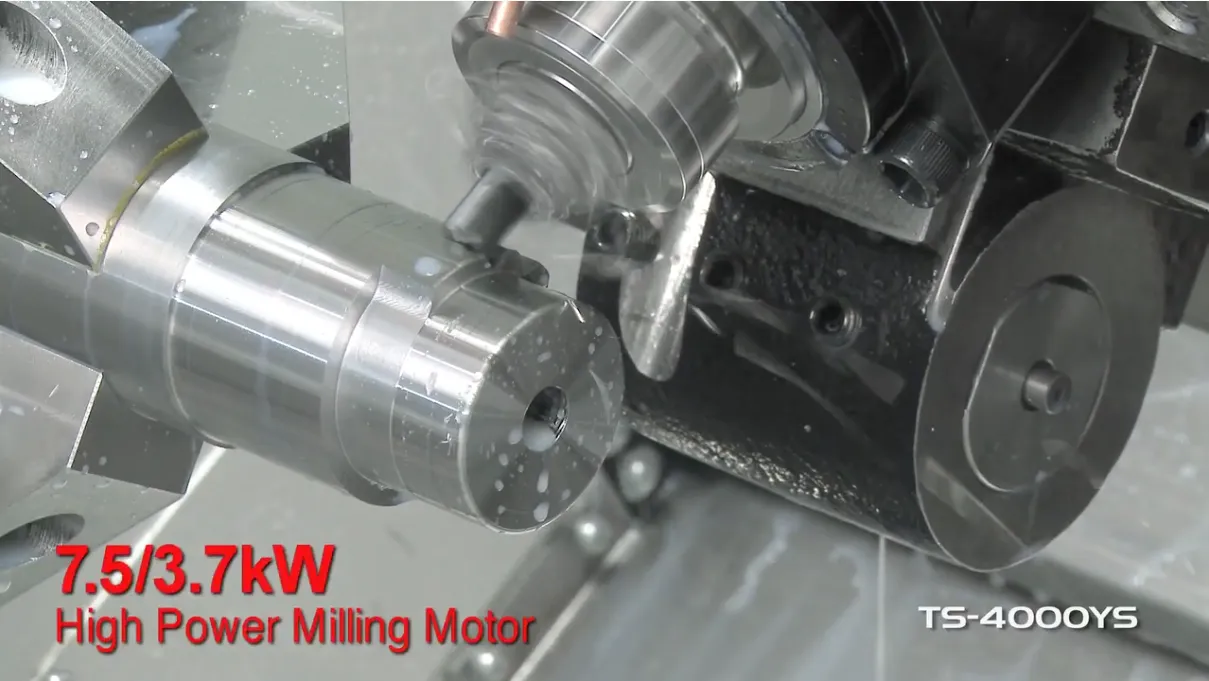

Rotary Tool Motor
(S3 25%/continuous) kW |
7.5/3.7 |
| Machine Height (mm) |
2300 |
| Required Floor Space (mm) |
2800×2140 *2 |
| Machine Weight (kg) |
6200 |
|
• Standard - : None
*1) Please note the bar capacity follows types of chucks and cylinders.
*2) Without Oilpan and Chip Conveyor.
|
| Specification |
Detail |
| Right Spindle Stock |
• |
| Tailstock (NC Servo Type) |
- |
| Chuck Size (in) |
6+6 |
| Max. Turning Diameter (mm) |
12-Station Turret (All-Holder Type) Standard: φ370
10-Station Turret (All-Holder Type): φ370
15-Station Turret (All-Holder Type): φ315
20-Station Turret (All-Holder Type): φ292 |
| Max. Turning Length (mm) |
12-Station Turret (All-Holder Type) Standard: 550
10-Station Turret (All-Holder Type): 550
15-Station Turret (All-Holder Type): 535
20-Station Turret (All-Holder Type): 545 |
| Bar Capacity *1 (mm) |
φ67 |
| Left Spindle Speed (min-1) |
5000 |
| Right Spindle Speed (min-1) |
6000 |
| Rotary Tool Speed (min-1) |
6000 |
| Rapid Traverse Rate (m/min) |
X : 30 / Z : 30 / Y : 10 / A : 30 |
Left Spindle Motor
(30 min/continuous) kW |
15/11 |
Right Spindle Motor
(30 min/continuous) kW |
11/7.5 |
Rotary Tool Motor
(S3 25%/continuous) kW |
7.5/3.7 |
| Machine Height (mm) |
2300 |
| Required Floor Space (mm) |
2800×2140 *2 |
| Machine Weight (kg) |
6200 |
|
• Standard - : None
*1) Please note the bar capacity follows types of chucks and cylinders.
*2) Without Oilpan and Chip Conveyor.
|
| Specification |
Detail |
| Right Spindle Stock |
• |
| Tailstock (NC Servo Type) |
- |
| Chuck Size (in) |
10+6 |
| Max. Turning Diameter (mm) |
12-Station Turret (All-Holder Type) Standard: φ370
10-Station Turret (All-Holder Type): φ370
15-Station Turret (All-Holder Type): φ315
20-Station Turret (All-Holder Type): φ292 |
| Max. Turning Length (mm) |
12-Station Turret (All-Holder Type) Standard: 750
10-Station Turret (All-Holder Type): 750
15-Station Turret (All-Holder Type): 735
20-Station Turret (All-Holder Type): 750 |
| Bar Capacity *1 (mm) |
φ82 |
| Left Spindle Speed (min-1) |
4200 |
| Right Spindle Speed (min-1) |
6000 |
| Rotary Tool Speed (min-1) |
6000 |
| Rapid Traverse Rate (m/min) |
X : 30 / Z : 30 / Y : 10 / A : 30 |
Left Spindle Motor
(30 min/continuous) kW |
22/15 |
Right Spindle Motor
(30 min/continuous) kW |
11/7.5 |
Rotary Tool Motor
(S3 25%/continuous) kW |
7.5/3.7 |
| Machine Height (mm) |
2300 |
| Required Floor Space (mm) |
3000×2140 *2 |
| Machine Weight (kg) |
6200 |
|
• Standard - : None
*1) Please note the bar capacity follows types of chucks and cylinders.
*2) Without Oilpan and Chip Conveyor.
|

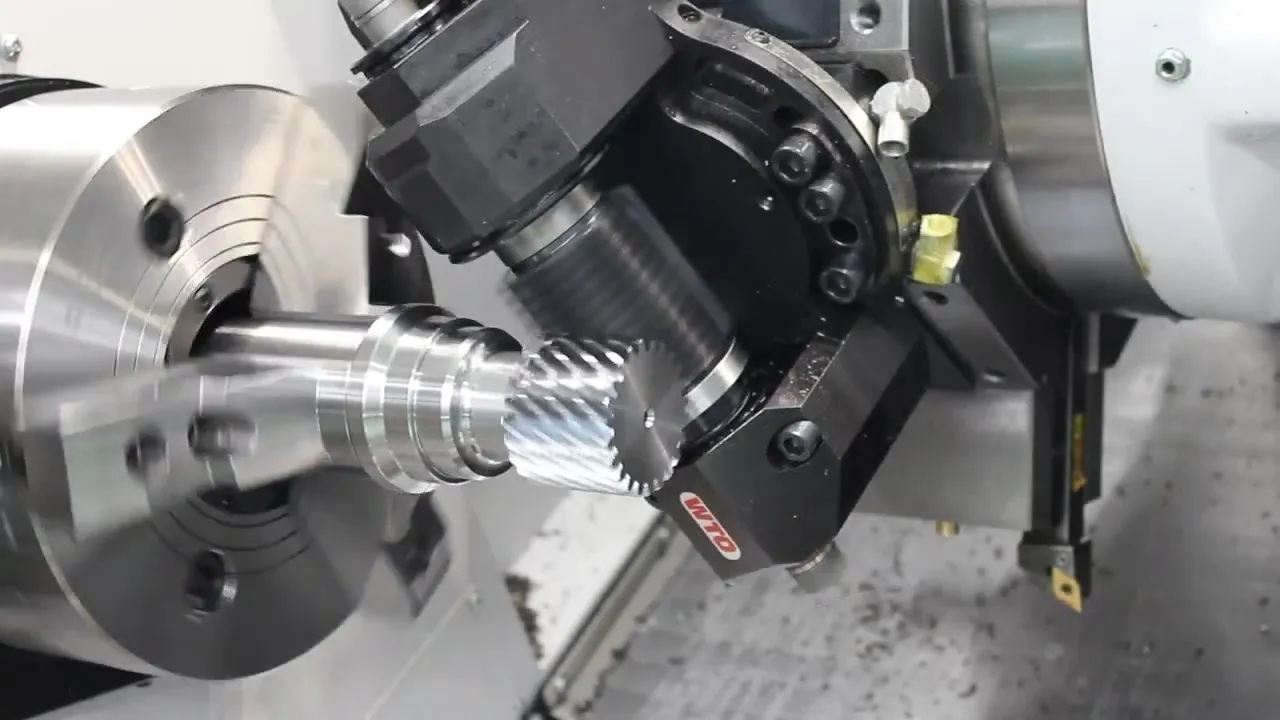

Features
Features
The Takisawa TS Series offers multi-tasking milling and turning in a powerful and accurate machine tool. With two spindles and standard Y-Axis, the TS series is suitable for a large variety of workpieces, allowing mill/turn applications from bar stock to finished components. Can complete front and rear processes all in one set-up.
