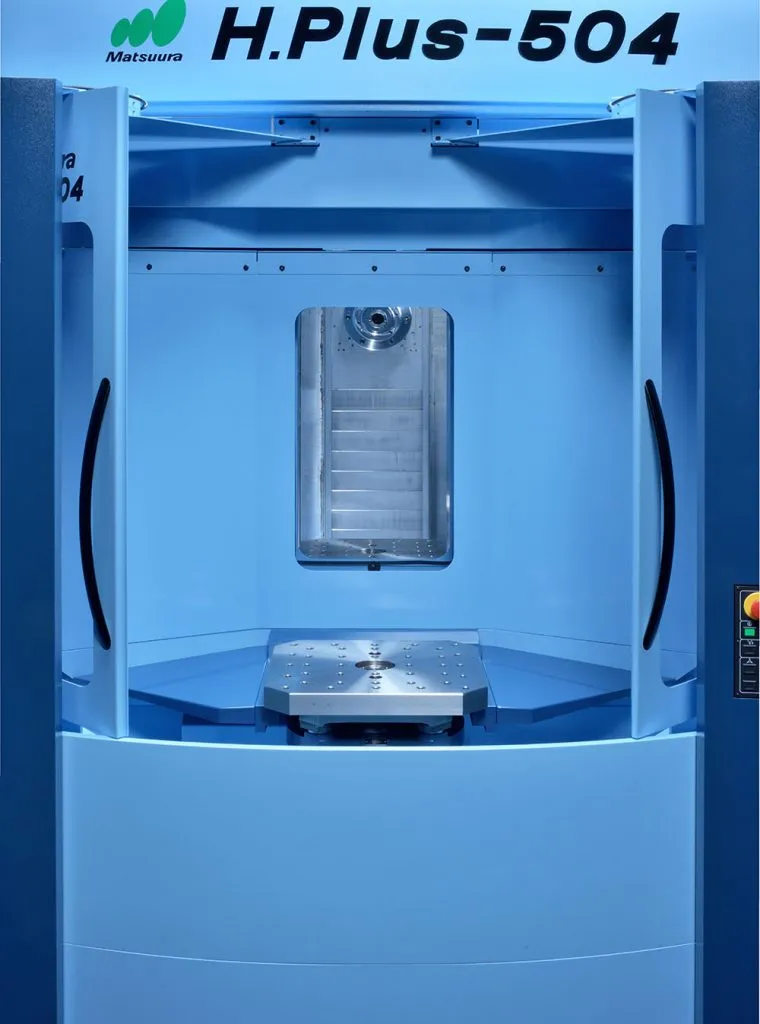

MATSUURA H.PLUS-504
The Matsuura H.Plus-504 Horizontal Machining Center is the best CNC machine for automatic production, offering high precision and exceptional cutting performance. With its high rigidity and high-speed CNC machining capabilities, this compact CNC machine delivers superior surface finish and reliability. Featuring the largest working envelope in its class, it's the ideal CNC machining center for demanding applications that require outstanding accuracy and efficiency in CNC machining.
Request A Quote
Specifications
Specifications
| Specification |
Detail |
| X Axis Travel |
28.74 in. |
| Y Axis Travel |
28.74 in. |
| Z Axis Travel |
31.49 in. |
| Working Surface |
19.68 x 19.68 in. |
| Loading Capacity |
1,650 lb. |
| Max. Workpiece Size |
Ø31.49 x H39.37 |
| Spindle Speed |
12,000:BT40 Standard 15,000:BT40 Optional
20,000:BT40 Optional |
| Rapid Traverse Rate X/Y/Z |
2,362.20/2,362.20/2,362.20 |
| Tool Storage Capacity |
60 :BT40 Standard
61 :BT40 Optional
Additional options available. |
| Number of Pallets |
2 Standard
6 Floor Pallet System Optional |
Features
Features
The Matsuura H.Plus-504 is designed for automatic production with high precision, high cutting performance and exceptional surface finish. In response to customer and market demand for the accommodation of larger workpieces, the H.Plus-504 possesses the largest working envelope in its class and will handle a maximum workpiece size of D800 mm x H1,000 mm, weighing 750kg on each pallet.
